In response to the characteristics that inserts in different areas on the cone have different cutting actions, conical inserts are placed in permanent contact area and aedge inserts are placed in alternative contact area so that the drilling efficiency is greatly improved. Wear resistance of cutting structure is enhanced by setting diamond inserts in the permanent contact area of the cone where inserts are severely worn. Tungsten carbide inserts are placed on cone top face to protect cone body from abrasive erosion.
The TCI tricone drill bit with active cutting protection inserts on bit body, the bit has good gauge protection and updrill capability.
High precision journal bearing. Balls lock the cone. Hardfaced head bearing surface. Cone bearing surface. Cone bearing inlaid wit friction-reducing alloy. Abrasion resistance and seizure resistance of the bearing are improved. Compared with three cone bit, the leg bearing is bigger, so it can receive higher WOB and high reliability.
Small angled watercourse design increased the shirttail thickness and can effectively prevent the watercourse erosion. Optimized hydraulics structure improves the cleaning capability abd increase ROP.
It is suitable for sidetracking, deep well drilling and old well repairing.
TCI tricone drill bit Size Bite Type
4 1/8104.8KD527 KD 547 KD 617
4 1/2114.3KD527 KD 547 KD 617
4 5/8117.5KD527 KD 547 KD 617
4 7/8123.8KD527 KD 547 KD 617
5 1/2139.7KD527 KD 547 KD 617
6152.4KD527 KD 547 KD 617
6 1/2165.1KD527 KD 547 KD 617
7 1/2190.5KD527 KD 547 KD 617
7 7/8200.0KD527 KD 547 KD 617
8 1/2215.9KD527 KD 547 KD 617
Recommended Drilling Parameters
TCI tricone drill bit

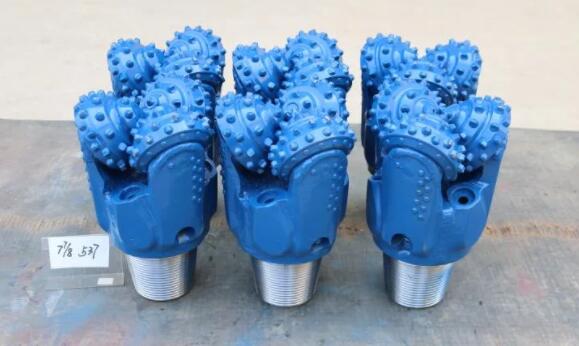

TCI tricone drill bit TCI Kingdream 7 7/8′ Tricone Drill Bits
