Understanding the Composition of a PDC Bit

In the realm of drilling technology, Polycrystalline Diamond Compact (PDC) bits have revolutionized the oil and gas industry. These advanced tools offer enhanced drilling efficiency and longevity, making them a popular choice for various drilling operations. In this article, we delve into the intricacies of PDC bits, exploring their composition, design, and the advantages they offer over conventional alternatives.


The Anatomy of a PDC Bit


Matrix Body

At the core of a PDC bit lies the matrix body, which is primarily composed of tungsten carbide and a metallic binder. The combination of these materials ensures excellent strength, toughness, and resistance to wear and erosion. The matrix body is responsible for providing structural integrity to the bit while withstanding the extreme conditions encountered during drilling.

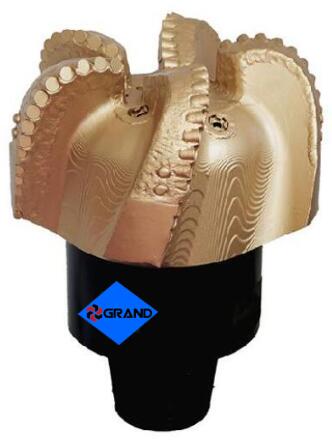

PDC bit


Cutting Structure

The cutting structure of a PDC bit consists of carefully engineered diamond cutters, also known as "PDC cutters," strategically positioned on the bit's surface. These cutters are composed of a polycrystalline diamond compact, which is a dense mass of synthetic diamond particles fused together under high pressure and temperature. The PDC cutters exhibit exceptional hardness, making them capable of effectively cutting through various rock formations encountered during drilling operations.


Backing Material

To further enhance the overall performance and durability of the PDC bit, a backing material is employed. This material serves as a support system for the PDC cutters, allowing them to withstand the immense forces generated during the drilling process. Typically, tungsten carbide or polycrystalline diamond is used as the backing material, providing added strength and stability.


Advantages of PDC Bits


Enhanced Drilling Efficiency

PDC bits offer superior drilling efficiency compared to traditional roller cone bits. The advanced cutting structure of PDC bits allows for higher penetration rates, resulting in faster drilling progress. Moreover, the self-sharpening nature of the diamond cutters reduces the need for frequent bit changes, leading to significant time and cost savings.


Extended Lifespan

The robust composition of PDC bits contributes to their extended lifespan. The combination of tungsten carbide and polycrystalline diamond ensures exceptional wear resistance, enabling the bit to withstand abrasive formations for prolonged periods. This longevity translates into reduced downtime and increased overall drilling productivity.



PDC bits are highly versatile and can be customized to suit specific drilling requirements. By altering the composition and arrangement of the diamond cutters, engineers can optimize the bit's performance for various formations, such as soft, medium, or hard rock. This adaptability makes PDC bits suitable for a wide range of drilling applications, including oil and gas exploration, geothermal drilling, and mining operations.


Improved Wellbore Stability

The precise and efficient drilling action of PDC bits contributes to improved wellbore stability. The consistent and controlled drilling process minimizes the risk of deviation, ensuring the wellbore remains straight and true. This enhanced stability reduces the chances of costly wellbore complications, such as hole collapse or deviation, thus enhancing overall drilling success rates.




In conclusion, the composition of a PDC bit plays a crucial role in its performance and durability. The matrix body, cutting structure, and backing material work harmoniously to provide exceptional drilling efficiency, extended lifespan, versatility, and improved wellbore stability. By understanding the intricacies of PDC bits, drillers and engineers can harness their full potential, leading to more efficient and successful drilling operations. We are a PDC bit supplier. If you are interested in our products, please contact us now!
